Xinhao txaus siab kom muaj KITEMARK tso cai tsaws li qub. Peb muaj ntau yam kev tsaws li qub rau siv nrog cov hluav taws kub hydrants thiab ntau hom hluav taws kub hoses. Peb muaj ntawv pov thawj nyob rau hauv ntau yam configurations xws li angled, ncaj-dhau, txoj cai-lub kaum sab xis, siab tswj "E", bib, thiab wedge. Tag nrho peb cov av tsaws valve yog muaj nrog threaded thiab flanged inlet xaiv.

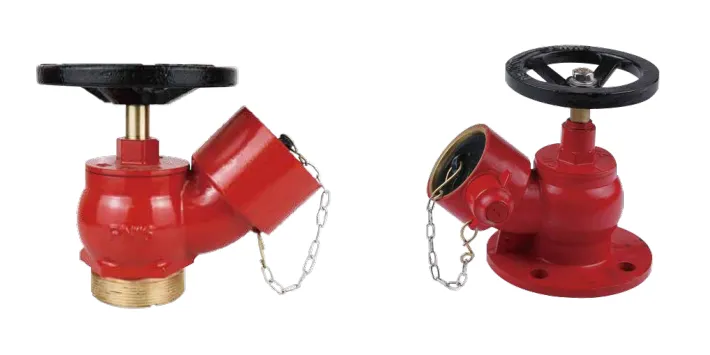

ObliFire Hydrant Landing Valves Specification
Specification
Oblique Hom Landing Valves
Lub cev: Copper Alloy lossis LG2 raws li qhov xav tau
Handwheel: Grey Cam khwb cia hlau
Inlet: 2.5 "BSP txiv neej xov los yog BS4504 flanged
Qhov hluav taws xob: 2.5 "BS336 Poj niam instantaneous coupling nrog yas hau thiab saw
Ua haujlwm siab: 16 bar
Kev ntsuas siab: 24bar
Nominal loj: DN65 los yog 2-1/2"
Qauv
Oblique Landing Valve rau Cov Hluav Taws Xob Hluav Taws Xob
Oblique Screw Landing Valves yog tsim los rau BS 5041.
Cov tsaws li qub tau muab faib ua qis qis thiab tsim nyog rau kev siv ntawm nominal
inlet siab mus txog 16 bar.
Compact tsim nrog zoo heev flow yam ntxwv
High quality casting tiav
Precise machining rau hlau rau hlau xau pov thawj zaum
Corrosion resistant
Kev kho dawb
Ua kom tiav nrog Brass cap thiab saw
Ncaj-los ntawm kev tsim kom yooj yim siv
Dab tsi yog qhov txawv ntawm Hydrant li qub thiab tsaws li qub?
Qhov chaw thiab Lub Hom Phiaj:
Hydrant Valves: Cov no feem ntau pom sab nraum zoov thiab txuas nrog lub zog siv dej, xws li lub hauv paus dej hauv nroog lossis lub tank dej tua hluav taws. Hydrant li qub yog siv los muab dej rau cov hoses tua hluav taws thiab lwm yam khoom siv thaum muaj hluav taws kub sab nraum zoov. Lawv feem ntau ntsia rau ntawm qhov hluav taws kub hydrants thiab yog ib feem ntawm qhov hluav taws kub hydrant system.
Landing Valves: Cov no feem ntau tau teeb tsa hauv tsev, feem ntau hauv stairwells lossis lwm qhov chaw nkag tau yooj yim hauv cov tsev. Cov dej tsaws tsag yog tsim los muab dej rau cov kav dej tua hluav taws hauv lub tsev, tshwj xeeb tshaj yog siv los ntawm cov tub ceev xwm tua hluav taws. Lawv tau muab tso rau hauv cov plag tsev sib txawv los yog tsaws kom yooj yim rau cov neeg tua hluav taws.
Mounting thiab Accessibility:
Hydrant Valves: Cov no feem ntau yog mounted ntawm hydrant posts lossis pillars positioned saum toj no hauv av. Lawv yog tsim los rau kev nkag tau yooj yim los ntawm cov neeg tua hluav taws thiab feem ntau nyob hauv qhov chaw sab nraum zoov xws li txoj kev, chaw nres tsheb, lossis chaw ua haujlwm.
Landing Valves: Cov li qub no feem ntau yog tso rau hauv cov phab ntsa ntawm cov tsev thiab nyob rau ntawm cov plag tsev sib txawv lossis kev tsaws. Lub tswv yim yog muab kev nkag tau yooj yim rau cov neeg tua hluav taws hauv lub tsev kom txuas cov hoses tsis tas yuav tawm mus sab nraud.
Siv thaum tua hluav taws:
Hydrant Valves: Cov li qub no feem ntau yog siv rau kev tua hluav taws sab nraum zoov. Cov neeg tua hluav taws txuas cov hoses rau cov kav dej kom nkag mus rau cov dej thiab tua hluav taws hauv cov chaw qhib, txoj kev, lossis cov chaw ua lag luam.
Landing Valves: Cov li qub no yog qhov tseem ceeb rau kev tua hluav taws hauv tsev. Lawv muab cov dej tshwj xeeb rau kev tua hluav taws rau txhua lub hauv pem teb lossis tsaws, tso cai rau cov neeg tua hluav taws tuaj yeem txuas cov hoses thiab tua hluav taws hauv cov qauv.
Hauv cov ntsiab lus, hydrant li qub yog cov khoom siv sab nraum zoov txuas nrog cov khoom siv hluav taws xob rau kev tua hluav taws hauv qhov chaw qhib, thaum lub qhov dej tsaws tsag yog cov khoom siv sab hauv tsev uas tau muab tso rau hauv cov tsev los muab cov dej rau kev tua hluav taws ntawm cov plag tsev sib txawv lossis kev tsaws.
