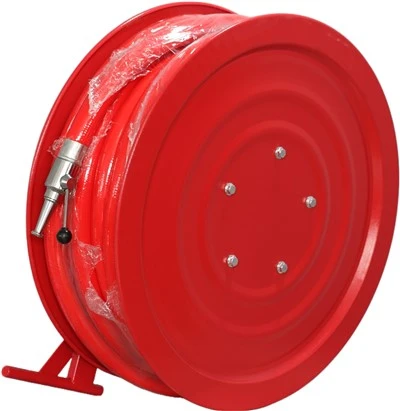

Hluav Taws Hose Reel Tuag Cast

Industrial tuag casting
Muaj ntau lub reels ntawm kev ua lag luam ua tsis teb tom qab siv ntev, muaj qhov cuam tshuam, thiab lawv cov xim txheej flake tawm. Peb cov khoom muaj cov Die Cast siab - cov qauv muaj zog, tshwj xeeb yog tsim los rau kev tshuaj xyuas ntau zaus thiab ua haujlwm hnyav.

• Kev sim ntawm qhov siab ntawm 16 bar, kev ua haujlwm siab nyob ruaj khov ntawm 14 bar. Txawm hais tias nws yog lub siab - lub twj tso kua mis siab ntawm lub tsev siab lossis qhov ntev - cov dej nyob hauv lub Hoobkas loj, lub cev lub cev tsis cuam tshuam los ntawm dej rauj.
• Qhov saum npoo yog coated nrog RAL3000 liab epoxy hmoov siv electrostatic txau tshuab. Piv nrog rau kev pleev xim zoo tib yam, qhov adhesion yog txhim kho los ntawm peb zaug, thiab nws tseem tuav cov xim liab ci ntsa iab txawm nyob hauv qhov chaw ntub dej thiab ntsev tsuag.



Dawb customization

Kev sib ntsib thoob ntiaj teb qhov project specifications

Cov qauv kos duab rau txhua qhov project sib txawv. Raws li lub chaw tsim khoom, peb muab cov kev xaiv hloov tau.



Customization dimension	Kev xaiv Specifications	Cov lus qhia txog kev yuav khoom
Inlet txoj kab uas hla	3/4 nti / 1 nti	A 1-inch inlet muaj tus nqi ntws ntau dua thiab tsim nyog rau cov chaw tsim khoom thiab chaw khaws khoom; 3/4-inch inlet muab cov nqi zoo dua thiab tsim nyog rau cov tsev ua haujlwm thiab chaw nyob.
Ntev ntawm lub hose	25 m / 30 m / Length tuaj yeem kho tau	Tus qauv hauv pem teb qhov siab yog 25 m; Qhov chaw loj lossis tshwj xeeb- cov qauv zoo li tus, pom zoo kom xaiv 30 m lossis ntev dua.
Lub tog raj kheej disc	550mm / 585mm	Qhov loj ntawm txoj kab uas hla ntawm lub disc, qhov ntau dua qhov khoov vojvoog ntawm lub hose, uas ua rau smoother retraction thiab txuas ntxiv thiab txo qhov kev puas tsuaj rau lub hose.
Rolling cov khoom siv disk	Cov pa roj carbon steel	Muaj zog load-cov kabmob muaj peev xwm, ua ke nrog hnyav- lub luag haujlwm brackets, kom tsis txhob deformation txawm tias tom qab ntev - ncua sij hawm.
Cov khoom siv yeeb nkab	PVC	Tsawg-kub resistant (-15 degree), ozone aging resistant, du yeeb nkab phab ntsa, tsis tshua muaj dej qhov hluav taws xob.
Cov khoom siv nozzle	Yas / tooj dag	Lub taub hau tooj dag yog qhov ruaj khov dua thiab muaj kev hloov kho dej ntau dua. Nws raug pom zoo rau cov haujlwm xa tawm lossis siab - cov chaw lag luam kawg.
Inlet xov	1 nti BSP / 1 nti NPT	Txhawb customization. Tsis xav tau rau adapters. Kev sib txuas ncaj qha rau cov kav dej hauv zos, tshem tawm qhov kev pheej hmoo ntawm cov dej ntws tawm.



Deconstruction ntawm cov ntsiab lus



①

Tuag- nrum rocker caj npab & rotary sib koom



Txais yuav precision tuag casting txheej txheem, kev sib koom ua ke yog nruab nrog ob chav bearings. Txawm hais tias kuaj txhua hnub, nws tseem du thiab zam kev txaj muag ntawm xeb thiab tuag.

②

Siab elastic PVC hose



Kev xaiv zoo PVC hauv ob sab phlu, hnav sab nrauv- tiv thaiv braiding. Tag nrho cov khoom tawm ntawm lub Hoobkas yam tsis muaj kev sib koom ua ke, uas yog qhov yooj yim tshem tawm txoj kev pheej hmoo ntawm lub raj tawg. Txawm tias nyob rau ntawm 14bar siab siab, lub hose expansion tus nqi yog tsawg heev, thiab cov dej yog hnyav dua.

③

International txheem threads



Lub flange interface yog ntsia nruj me ntsis raws li BSP lossis NPT cov qauv. Cov xov raug yog siab heev. Tsuas yog qhwv daim kab xev nplaum nyob ib ncig ntawm nws thiab tus nqi zog ua haujlwm tuaj yeem txo qis.

Tiv tauj peb





Vim li cas thiaj xaiv peb?

Peb lub Hoobkas ncaj qha los ntawm lub hauv paus, tsis muaj intermediaries: Peb muaj tiav casting, machining thiab painting ntau lawm kab. Qhov tsawg kawg nkaus txiav txim kom muaj nuj nqis yog hloov tau, thiab cov xaj loj tuaj yeem txaus siab rau cov nqi txo qis.

Ua ib qho kev nug tam sim
Ntxiv txheej pov hwm rau koj qhov project

Thov muab koj li【Khoom xav tau】 + 【Specification ua ke】(piv txwv li: 1 nti dej inlet, 30 meters ntev, 585mm disc, NPT xov, tooj dag nozzle), thiab peb yuav muab rau koj ib tug "ib- ntawm-ib" kev hais lus tus kheej.

Q: Yuav ua li cas xaiv ntawm 25 meters thiab 30 meters?
A: Nws yog qhov zoo dua los xaiv qhov ntev dua li qhov luv dua, tab sis nco ntsoov tias cov discs sib xws.

• 25 m:Haum rau cov tsev ua haujlwm thiab cov chaw nyob hauv tsev nrog cov txheej txheem hauv pem teb qhov siab (hauv qab 3.5 meters) thiab kab sib nrug ntawm ib ncig ntawm 8 meters. Qhov kev pab cuam lub vojvoog yog kwv yees li 18-20 meters (xav txog kev poob).
• 30 m:Pom zoo rau cov factories loj, logistics warehouses, thiab underground garages. Nyob rau hauv cov chaw no, qhov hluav taws kub tuaj yeem pom los ntawm cov txee lossis tsheb. Ib qho ntxiv 5 meters feem ntau yog qhov sib txawv ntawm kev ncav cuag nws thiab saib nws kub hnyiab tsis muaj zog.

Lub ntsiab lus tseem ceeb:Qhov ntev ntawm lub hose yuav tsum phim lub cheeb ntawm lub disc. Peb muab ob qhov loj me: 550mm thiab 585mm. Rau 30-meter hose, nws raug nquahu kom siv 585mm loj disc. Qhov no tso cai rau lub vojvoog winding loj dua, ua rau kev thim rov qab thiab txuas ntxiv siv zog ntau dua, thiab lub hose tsis tshua muaj hnub nyoog thiab tawg vim lub sijhawm ntev "nyuaj khoov". Yog tias koj xaiv 30-meter hose tab sis siv lub disc me me, qhov kev tiv thaiv thaum lub sijhawm ua haujlwm yuav nce ntxiv.
Ntxiv thiab:Yog tias koj muaj cov kev cai tshwj xeeb (xws li 18 meters, 22 meters, 35 meters), peb tuaj yeem ua raws li qhov ntev. Peb yuav tsim raws li qhov project xav tau yam tsis tau nkim nyiaj txiag.

Q: Puas muaj qhov sib txawv ntawm cov yas nozzles thiab tooj dag nozzles?
A: Muaj qhov sib txawv tseem ceeb, feem ntau ntawm "durability" thiab "tes hnov".

Cov lus qhia txog kev yuav khoom:

• Cov tsev nyob thiab cov tsev ua haujlwm zoo tib yam:Yas nozzles zoo kawg nkaus txaus thiab muab qhov zoo tshaj plaws tus nqi rau cov nyiaj.
• Commercial complexes, tsev kawm ntawv, tsev kho mob:Cov cheeb tsam no muaj cov tsheb khiav ceev thiab nquag siv cov cuab yeej siv. Nws raug nquahu kom siv tooj dag nozzles, vim tias lawv tuaj yeem tiv taus kev tshuaj xyuas ntau zaus thiab "tsis yog- kev ua haujlwm tshaj lij".
